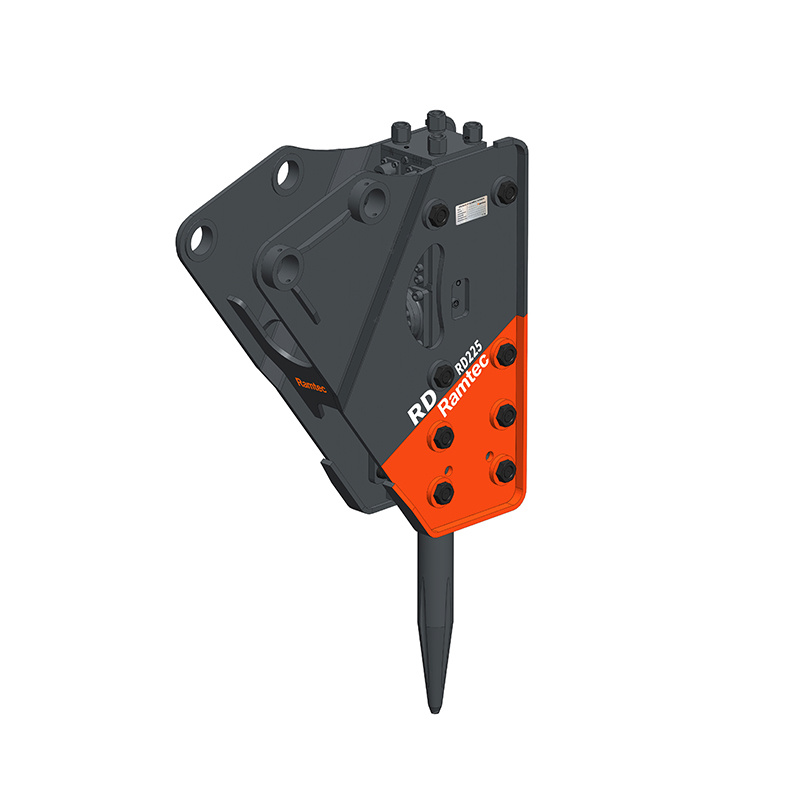

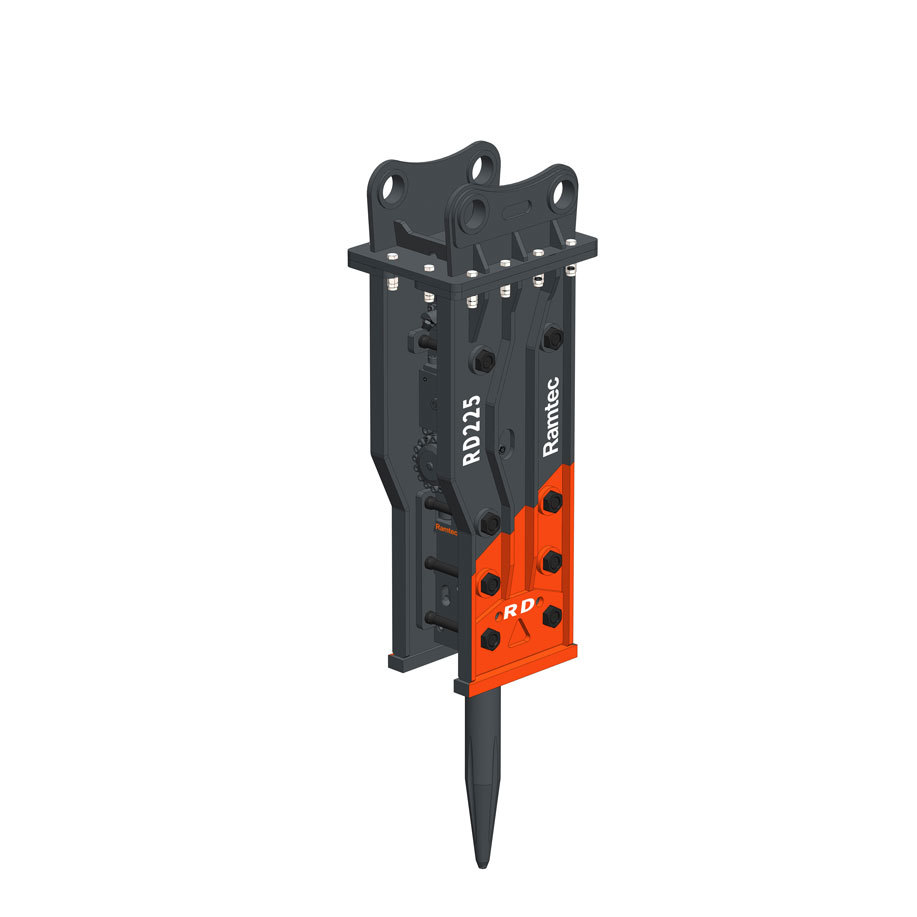

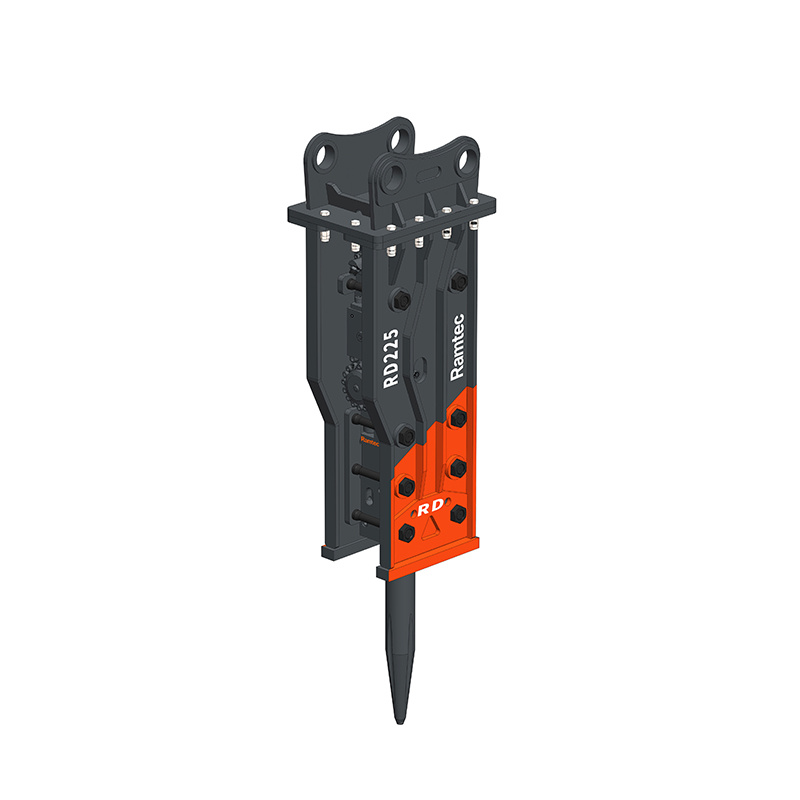

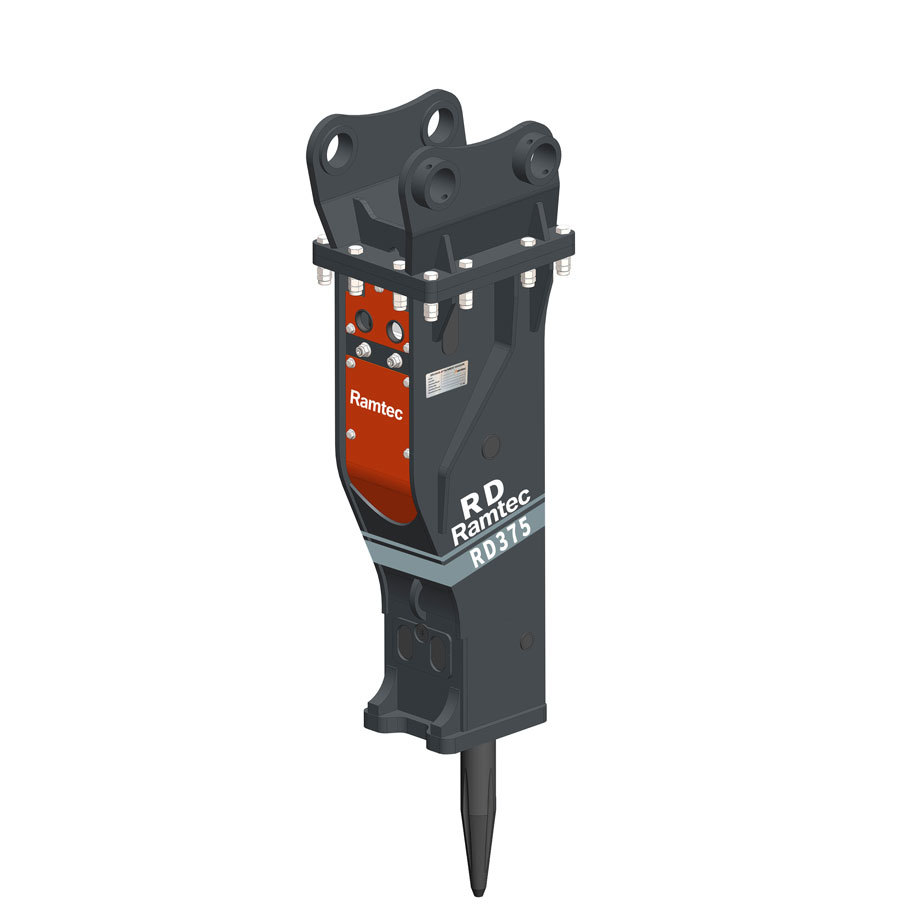

RD Series Hammers

Low Gas Type - Ramtec RD series is an excellent and stable hydraulic breakers. The product structure design has been tested by the market for a long time. After being carved by Ramtec technical team, the latest RD series has been developed, which has excellent high temperature resistance performance, fast frequency, strong impact force and excellent reaction force control. It has long been loved by the majority of construction machinery consumers. The parts are simple and easy to replace, and it is easier for the operator to maintain and replace the parts. The lightweight fuselage structure greatly reduces the load of the excavator, thereby increasing the service life of the hydraulic excavator and reducing the vibration and loss of the carrier. Due to its excellent resistance to high temperatures, it is a very suitable choice in areas with high construction temperatures.

Talk With Us

Download Catalog

Specification

Metric

Imperial

RD5~175

Description	Unit	RD5	RD6	RD9	RD125	RD175
Operation weight	kg	285	349	465	865	1120
Required oil flow	l/min	40-70	50-90	65-110	90-120	90-120
Operation pressure	kg/cm2	100-140	120-150	130-160	140-160	150-170
Impact rate	bpm	750-980	600-950	550-900	450-850	400-750
Tool diameter	mm	68	75	90	110	120
Impact power	J	700	950	1350	1800	2000
Carrier weight	ton	5-7	6-8	9-11	12-14	14-18

RD225~500

Description	Unit	RD225	RD275	RD375	RD475	RD500
Operation weight	kg	1750	1999	2200	2800	3995
Required oil flow	l/min	130-150	130-150	150-190	180-250	200-270
Operation pressure	kg/cm2	160-180	180-200	180-200	180-200	220-270
Impact rate	bpm	350-700	350-700	300-650	260-450	200-370
Tool diameter	mm	135	140	155	165	185
Impact power	J	3600	4100	5000	7100	13500
Carrier weight	ton	18-21	22-26	26-32	36-42	42-48

RD550~800

Description	Unit	RD550	RD600	RD700	RD800
Operation weight	kg	4850	5010	6814	7911
Required oil flow	l/min	220-290	220-290	230-300	250-330
Operation pressure	kg/cm2	220-270	220-270	220-270	230-300
Impact rate	bpm	150-210	150-210	120-170	100-150
Tool diameter	mm	195	200	210	235
Impact power	J	18500	20000	23000	27500
Carrier weight	ton	48-55	50-62	62-68	68-85

RD5~175

Description	Unit	RD5	RD6	RD9	RD125	RD175
Operation weight	lb	628	769	975	1907	2469
Required oil flow	gal/min	11-18	13-24	18-28	24-32	24-32
Operation pressure	psi	1595-2031	1740-2176	1885-2320	2031-2320	2176-2466
Impact rate	bpm	750-980	600-950	550-900	450-850	400-750
Tool diameter	inch	2.68	2.95	3.54	4.33	4.72
Impact power	J	700	950	1350	1800	2000
Carrier weight	lb	11023-15432	13228-17637	19842-24251	26455-30865	30865-39683

RD225~500

Description	Unit	RD225	RD275	RD375	RD475	RD500
Operation weight	lb	3858	4407	4850	6173	8807
Required oil flow	gal/min	34-40	34-40	40-50	48-66	53-71
Operation pressure	psi	2321-2611	2611-2901	2611-2901	2611-2901	3191-3916
Impact rate	bpm	350-700	350-700	300-650	260-450	200-370
Tool diameter	inch	5.31	5.51	6.1	6.5	7.29
Impact power	J	3600	4100	5000	7100	13500
Carrier weight	lb	39683-46297	48501-57320	57320-70548	79366-92594	92594-105822

RD550~800

Description	Unit	RD550	RD600	RD700	RD800
Operation weight	lb	10692	11045	15022	17441
Required oil flow	gal/min	58-77	58-77	61-79	66-87
Operation pressure	psi	3191-3916	3191-3916	3191-3916	3336-4351
Impact rate	bpm	150-210	150-210	120-170	100-150
Tool diameter	inch	7.68	7.87	8.27	9.25
Impact power	J	18500	20000	23000	27500
Carrier weight	lb	105821-121254	110231-136687	136686-149914	149914-187393
