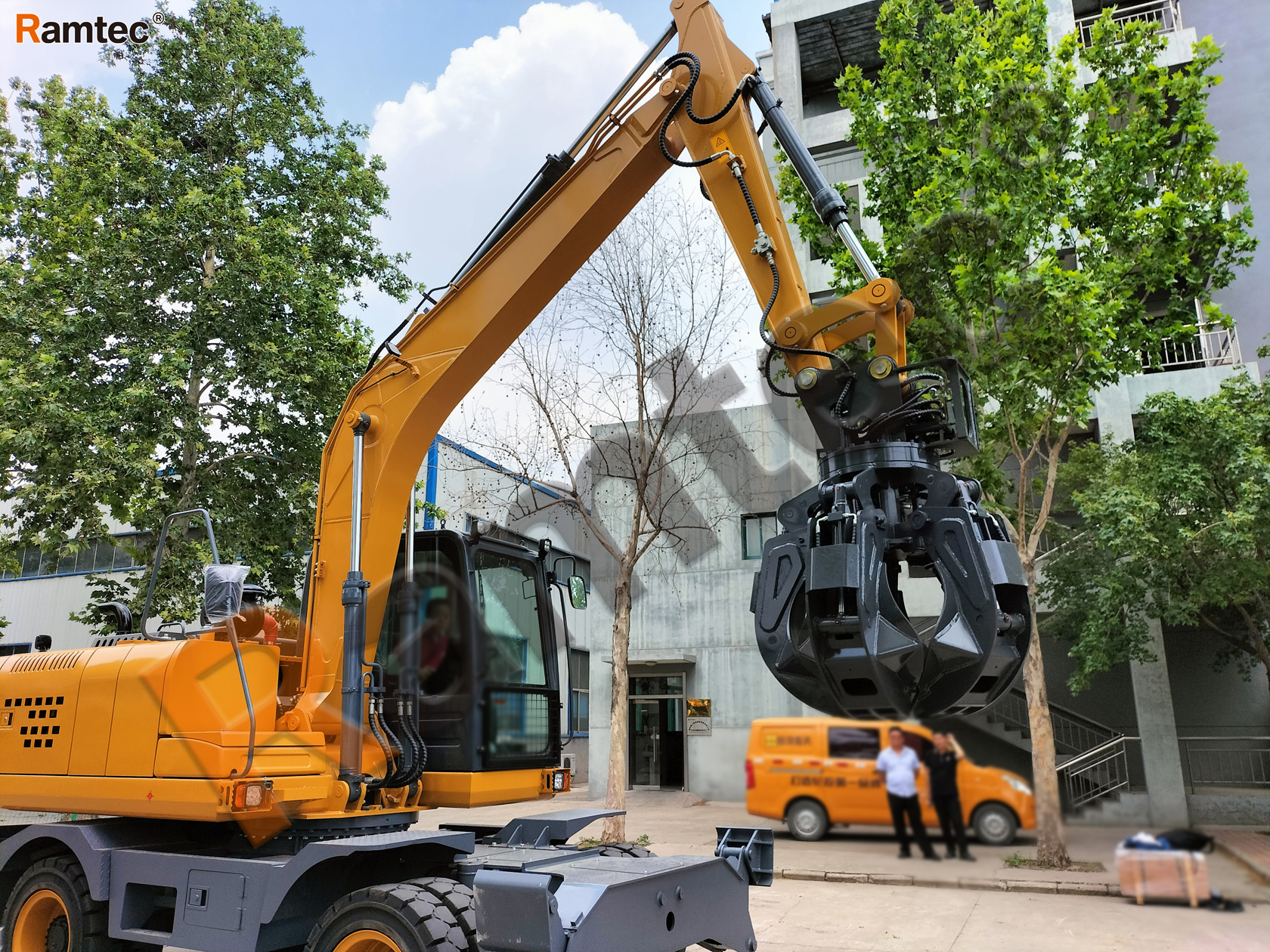

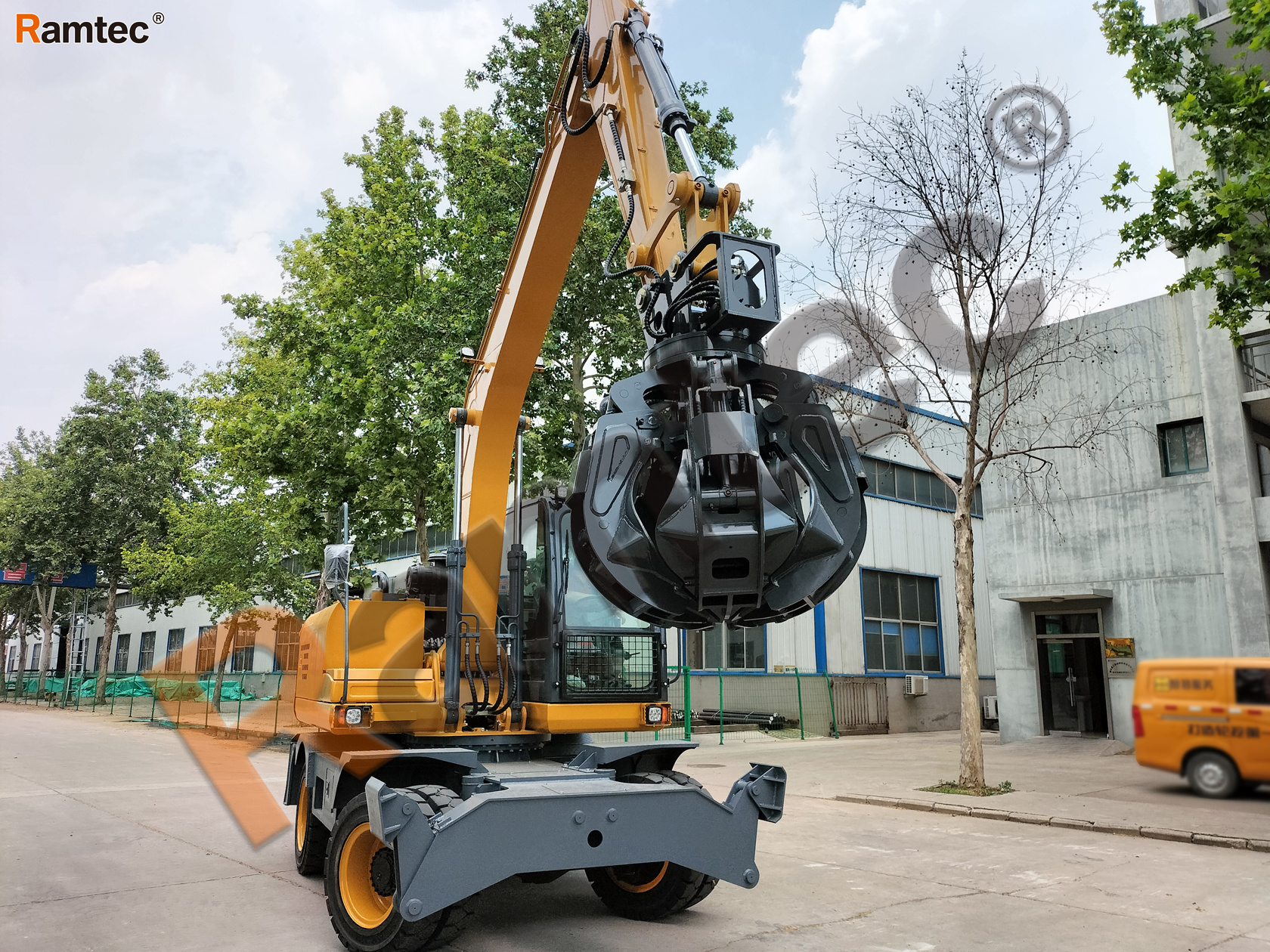

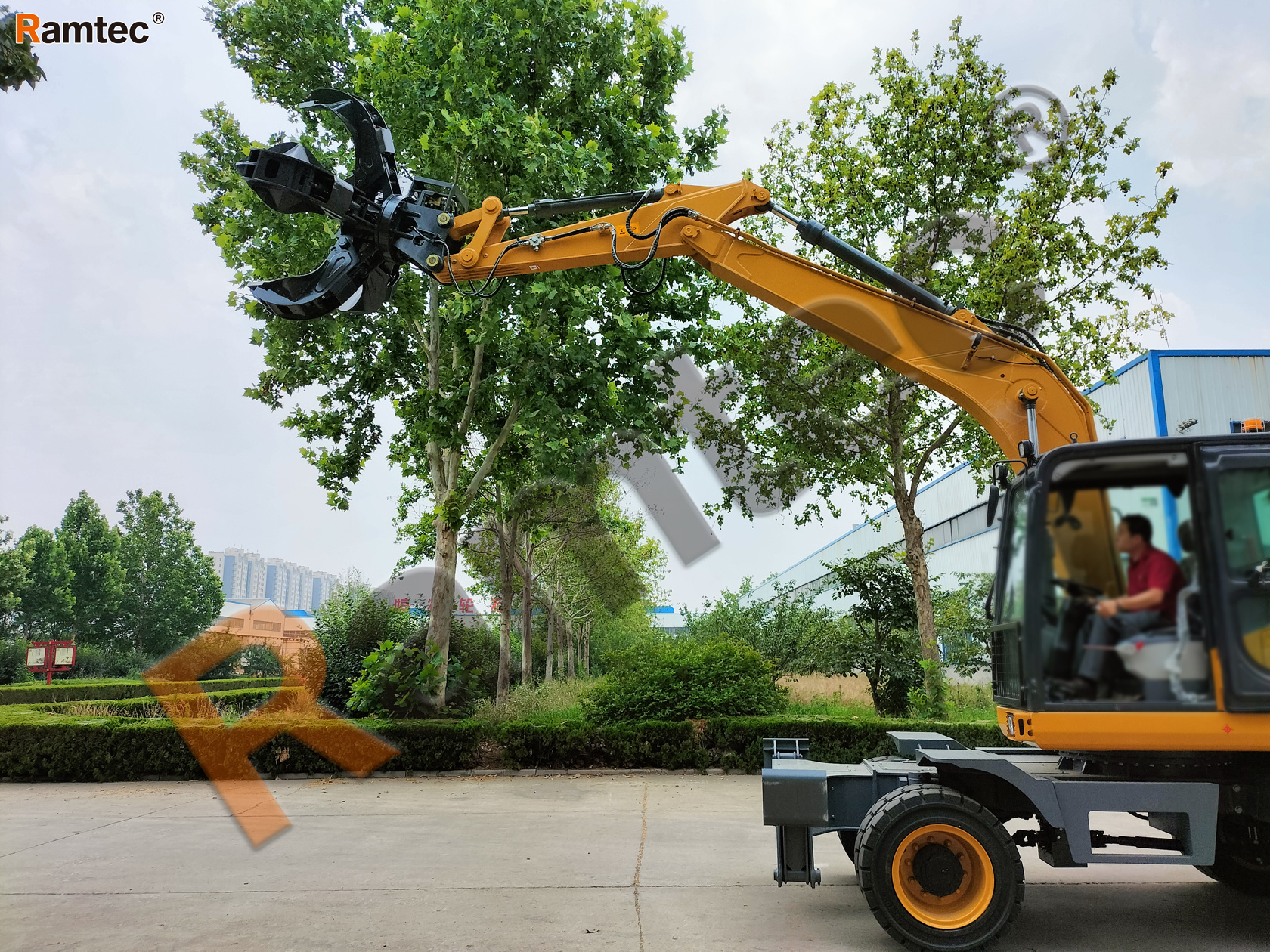

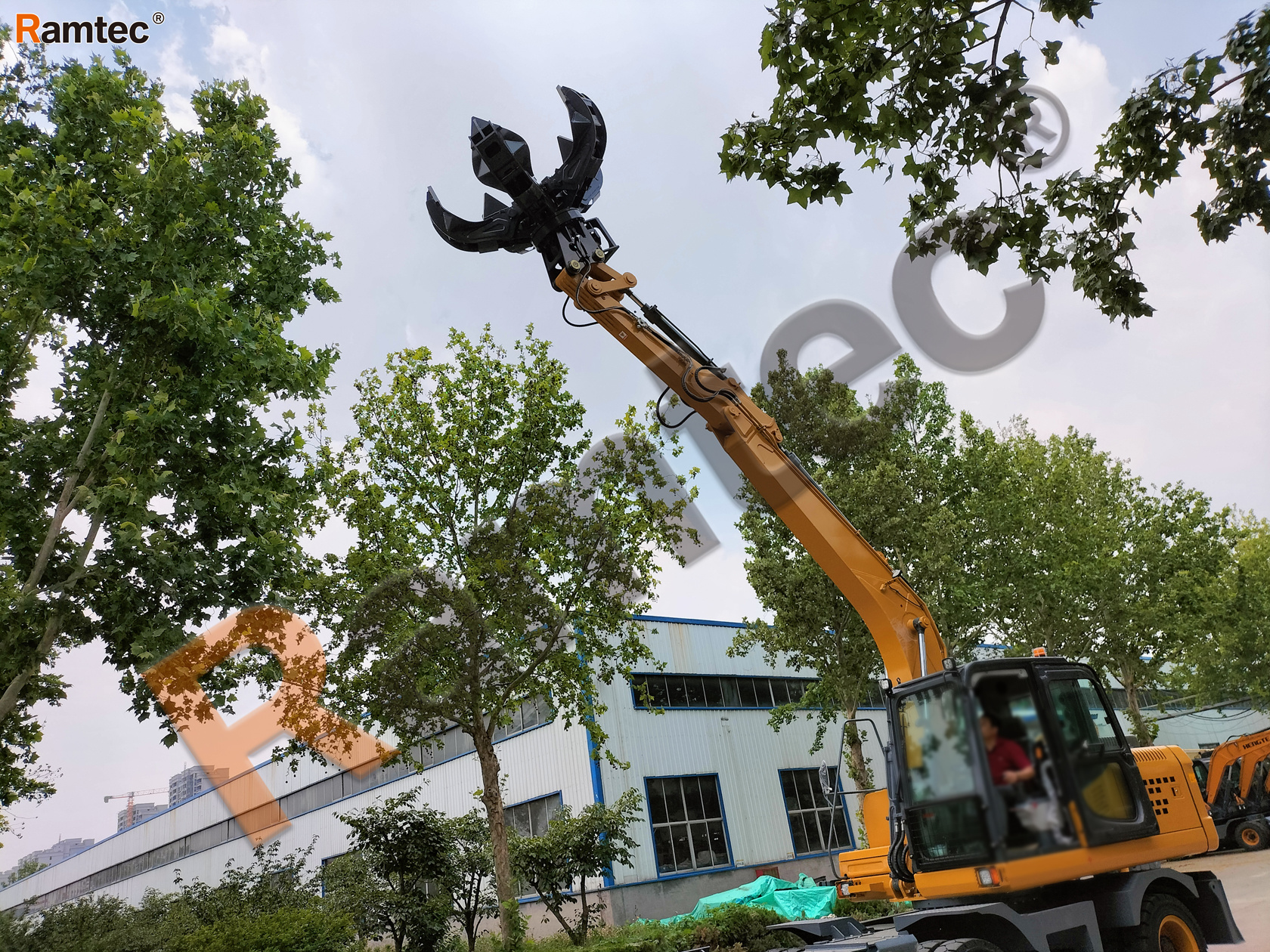

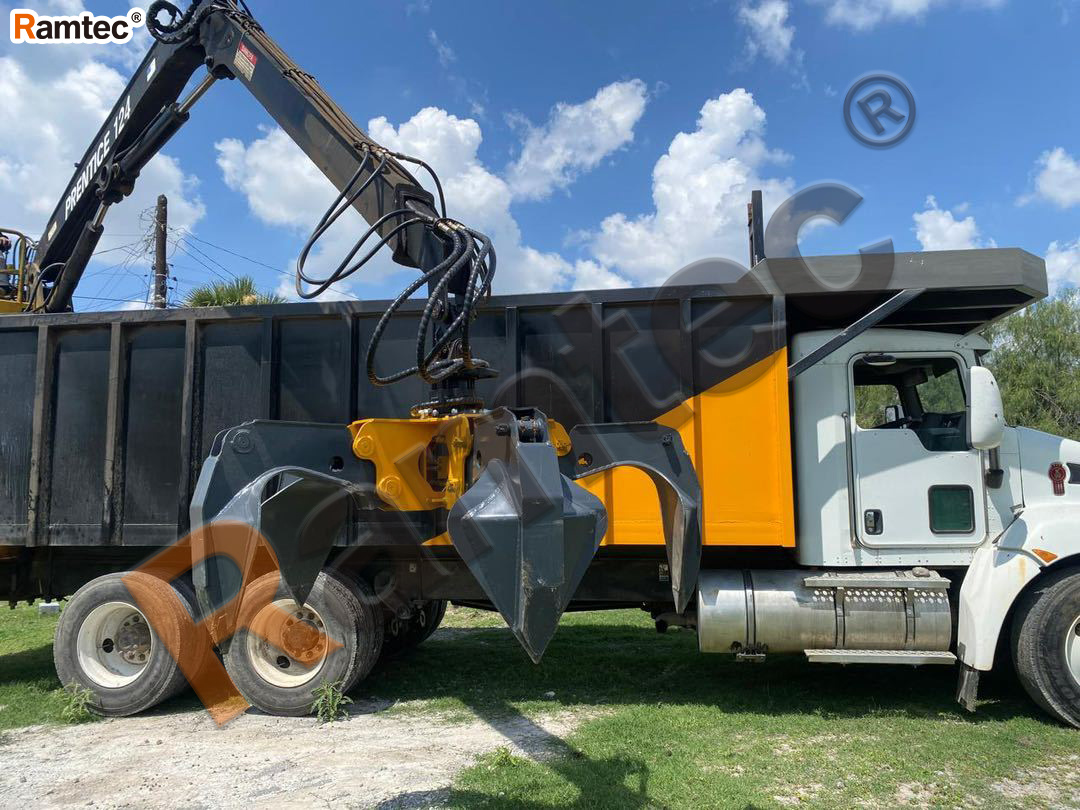

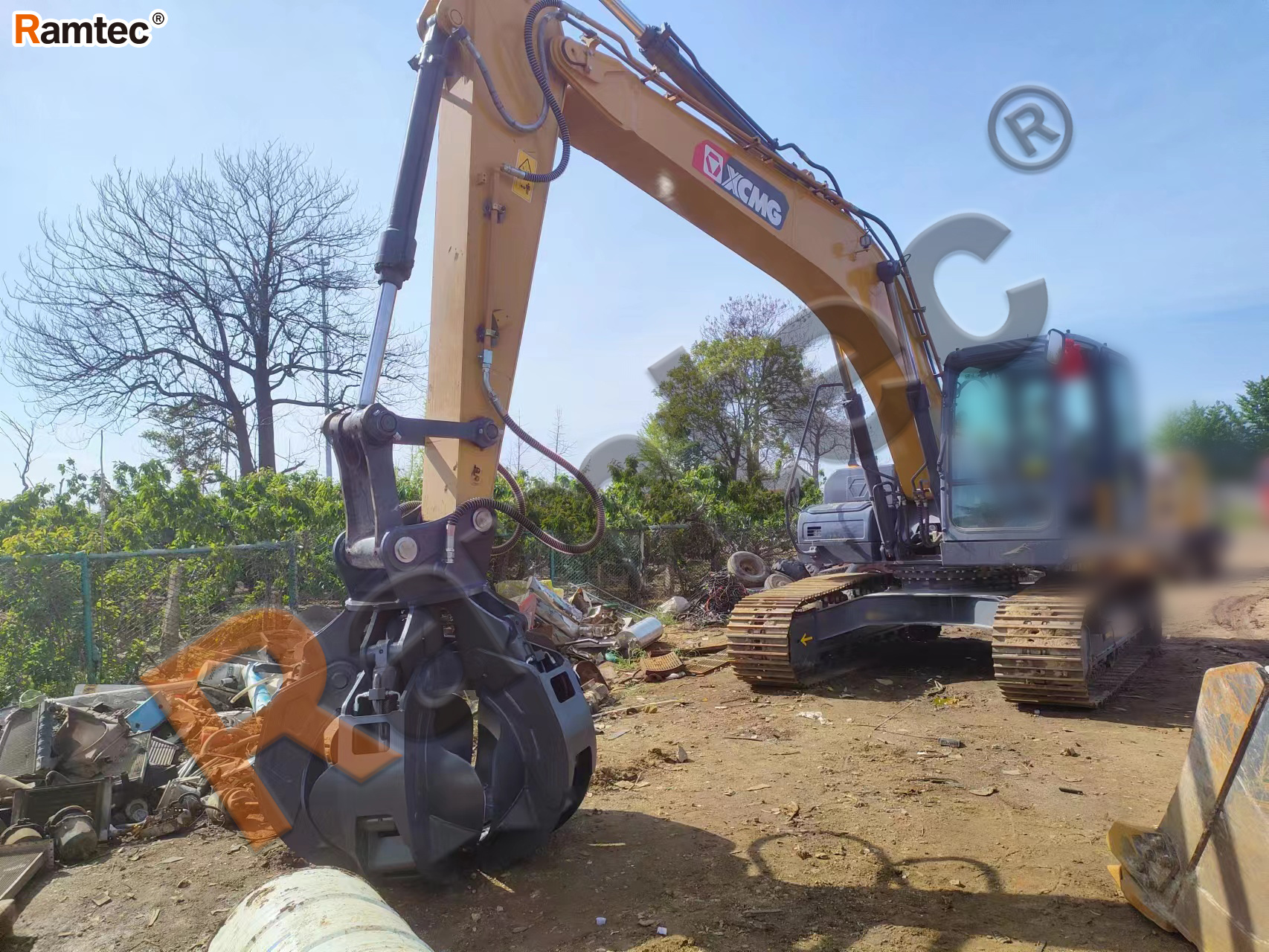

Hoisting Grapple
Multi-Tine Design:
4/5/6 tines.Suitable Excavator:
6-40tonCustomized service, meet specific need
Product Features
✪ Reinforcement with wear-resistant material.
✪ Robust processing.
✪ 360°endless rotation.
✪ Optimum maintenance and servicing characteristics.
✪ Multi-tine grapples are perfectly matched to the type of excavator.
✪ High closing power.
Specification
Metric
Imperial
HG04~HG10
| Model | Unit | HG04-A4 | HG06-A5 | HG08-A5 | HG10-A4 | HG10-A5 |
| Max Opening | mm | 1380 | 1722 | 2051 | 2200 | 2200 |
| Height/Opening Height | mm | 1473/1396 | 1806/1666 | 2053/1840 | 2488/2337 | 2488/2337 |
| Width | mm | 1140 | 1356 | 1600 | 2044 | 2063 |
| Tines | Unit | 4 | 5 | 5 | 4 | 5 |
| Weight | kg | 640 | 1350 | 2035 | 2450 | 2865 |
| Working Pressure | bar | 160-180 | 180-220 | 180-220 | 220-260 | 220-260 |
| Working Flow | l/min | 30-40 | 60-80 | 60-80 | 100-125 | 100-125 |
| Capacity | m³ | 0.23 | 0.33 | 0.5 | 1 | 1 |
| Excavator | ton | 6-8 | 12-15 | 20-24 | 30-40 | 30-40 |
HG04~HG10
| Model | Unit | HG04-A4 | HG06-A5 | HG08-A5 | HG10-A4 | HG10-A5 |
| Max Opening | inch | 54.3 | 67.8 | 80.8 | 86.6 | 86.6 |
| Height/Opening Height | inch | 58/55 | 71/65.6 | 80.8/72.4 | 98/92 | 98/92 |
| Width | inch | 44.9 | 53.4 | 63 | 80.5 | 81.2 |
| Tines | Unit | 4 | 5 | 5 | 4 | 5 |
| Weight | lb | 1411 | 2976.2 | 4486.4 | 5401.3 | 6316.2 |
| Working Pressure | psl | 2320-2610 | 2610-3191 | 2610-3191 | 3191-3771 | 3191-3771 |
| Working Flow | gpm | 8-11 | 16-21 | 16-21 | 26-33 | 26-33 |
| Capacity | ft3 | 8 | 12 | 18 | 35 | 35 |
| Evcavator | lb | 13228-17637 | 26455-33069 | 44092-52911 | 66139-88185 | 66139-88186 |
